Overview

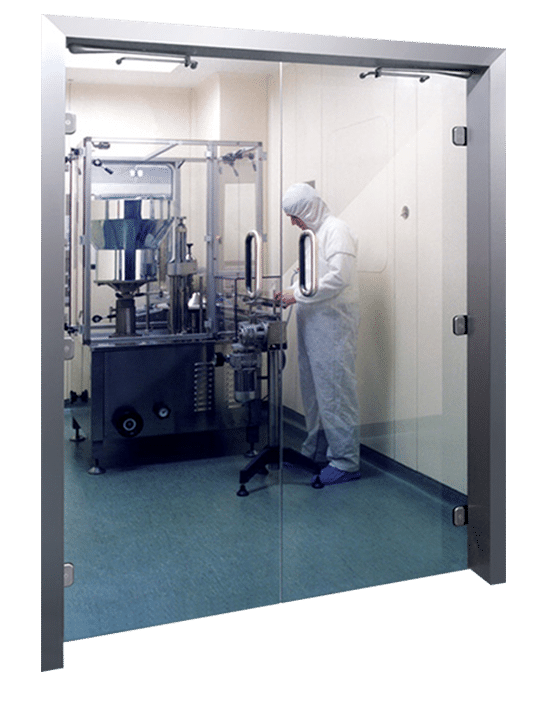

PBSC’s cleanroom glass door sets incorporate the renowned PBSC unique wrap-around door frame, with its clean and robust design.

The combination of a toughened glass door leaf within the clean lines of the stainless-steel frame will without question give a showpiece appearance to your facility whilst providing exemplary functionality.

Read more

Features

  • Stainless or Powder Coated Full Wrap Around Shroud / Architrave
  • Frameless Tempered Glass Door Leaf (10mm thick)
  • Purpose Built Solid Stainless-Steel Hinge to Provide Easy Cleaning and Opening up to 170°
  • Custom Frame Sizes to Suit Opening
  • Made to Suit Specific Wall Thicknesses
  • Flush Maglock in Frame
  • No Rebate on Frame – Maximum Clear Opening

Applications

PBSC's Glass Door set is the preferred option within a laboratory environment.

Available with the PBSC concealed closer system, which comprises of a single closer arm in solid stainless steel and a closer sealed into the door frame, thus removing the ledges created and the difficult-to-clean arms on the conventional surface-mounted closers.

The glass door set is purpose-built for laboratories with minimal visible fixings and is available as a single or double-door construction and can be bespoke to fit existing walls.

PBSC's Glass Door can also be known as a Hospital Door, Healthcare Door, Clean Room Door, Cleanroom Door, NHS Door, APR Door, Clean Room Door, Cleanroom Technology, Lab Door, laboratory doors, labdoor, vision glass panel, medical door, and Tempered Glass Door.

Technical Specification

  • Maximum Structural Opening Single Door: 1250mm Wide x 2500mm High
  • Maximum Structural Opening Double Door: 2500mm Wide x 2500mm High
  • 10 mm Toughened Leaf to EN 12150 1
  • Door Weight: 25kg/m2
  • Door Closer: Concealed or Surface Mounted Options. EN2-EN6
  • Please contact PBSC for specific design options.
  • -
  • PBSC reserve the right to introduce changes in performance, configuration and technology, dimension, weights and materials in the course of technical progress. Images may not be accurate.
  • Some of the information/images/equipment described or shown may only be available at extra cost. Features & specifications will vary.

Options

  • Single, Double or Leaf & 1/2 Door Options
  • Wide Range of Tints, Screen Prints, Printed Films and Etched Glass to Suit the Area
  • Flush Maglock for Interlock Systems
  • Electric / Hydraulic Auto Openers / Closers
