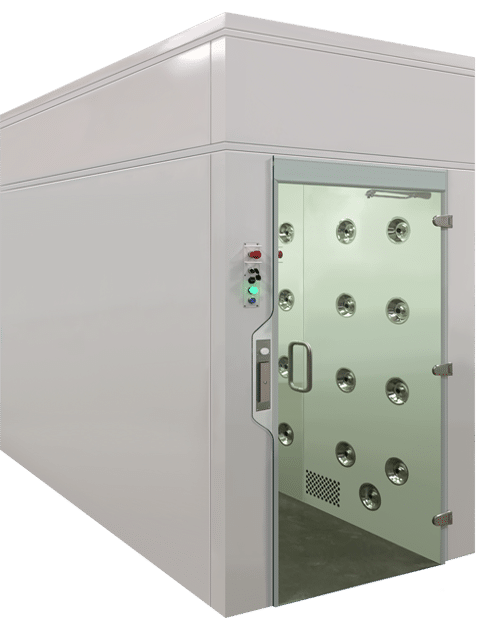

Air Shower Integrated AHU PD-Ai

The air shower is the latest design from PBSC which has been continually improved over the years and features either stainless-steel or powder-coated steel construction with interlocked float and toughened glass personnel doors. The shower has the final assembly in place and requires no cranes or special access on-site as the largest piece will fit through a single doorway.

Maximum clear opening – the door design has been refined to provide a maximum clear entry width with the frame finishing flush to the internal panels. (straight-through design only).

There are 9 x adjustable stainless-steel nozzles on both side walls, 18 nozzles in total.

As the operative enters the shower, the PLC automatically turns on the high-performance 24VDC LED light, which is powered by the PLC (no mains power in the shower cubicle).

The lowest nozzle is only 21.5cm from the finish floor level with a low-level return on each wall panel to the AHU built into the top of the shower cubicle.

When the shower cycle is started by the operative, the shower controls lock the doors and run the fans to provide the airflow below. (Note the shower has a low power usage with a highly efficient fan, the total power requirement is only 10Amps @ 110 – 230V, 50 to 60HZ, 1 Ph.)

• Clean Filter – 150 Pa· 32m/s at 5cm from the nozzles
• Dirty Filter – 300 Pa
• 28 m/s at 5cm from the nozzles

The system is available with a range of control panel options, the standard is a Siemens Logo, which can be provided with an Allen Bradley PLC or a Siemens S1200 PLC.The S1200 PLC comes with a touch screen in the shower (or on the PLC cabinet) to show the shower status alarms, which can be seen and cleared from the screen.

Available with Safe Change – Please contact PBSC for more information

Please see PBSC’s other air shower information if the particles are hazardous and a safe change on the filter housing is required.
